PanTilt for Blackmagic design Micro Studio Camera G2

The Micro Studio camera G2 is often used for making overview shots, sometimes mounted on places that are difficult to reach. This pan/tilt solution enables you to remotely adjust your shot during broadcasting.

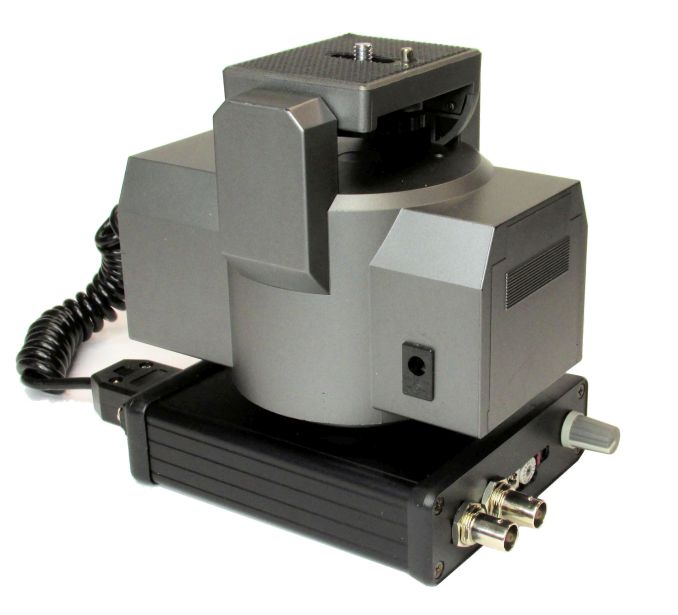

This pan/tilt solution consists of an MP101 pan/tilt head mounted on top of an interfacebox which uses the Blackmagic Arduinoshield. The unit runs on 12V, and powers both the interface and pan/tilt head. The interface extracts Pan Tilt and Tally information that is embedded in the ATEM SDI return signal.

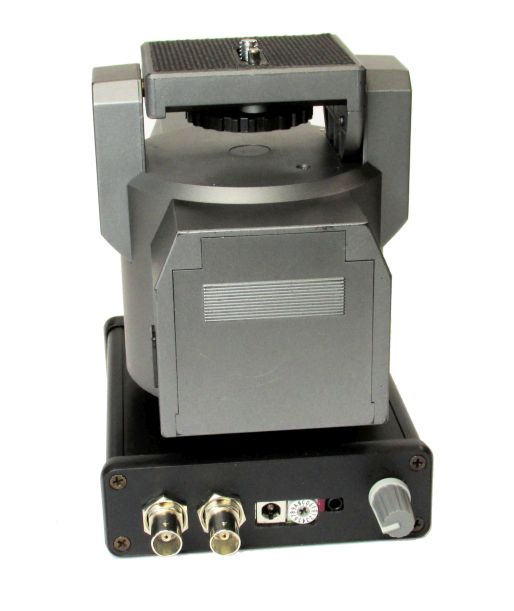

The tally signal is output on a built-in tally LED and a 3.5mm connector for tally output. The tally is dimmable and the camera/tally number is selected with a rotary switch. The pan/tilt and zoom can be controlled via Blackmagic design ATEM control panels, or PTZ-link controller PTZ-link.
The MP101 head does not support presets.

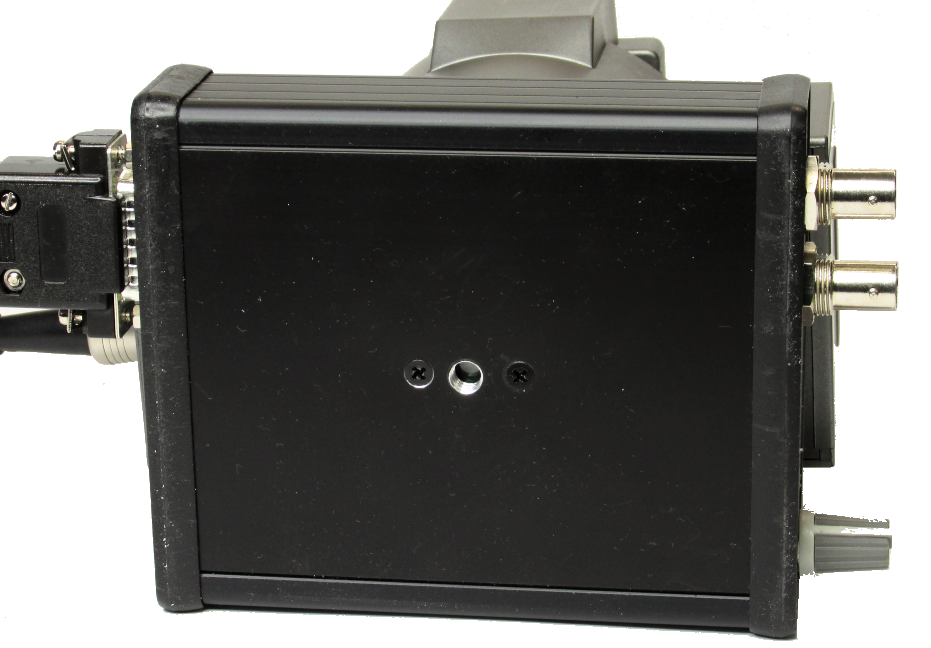

The interface can be tripod mounted with a 1/4" screw.

This interface uses the Blackmagic 3G-SDI Arduino shield. Note that this shield accepts 3G SDI maximum. To function with 4K, you need a switcher that can downconvert the program return signal, such as Constellation mixers (except for Constellation 8K).
