Tally via Blackmagic design return SDI
This BMSDI.Tally converter extracts tally information that is embedded in
the return SDI signal of a Blackmagic design ATEM videoswitcher, and outputs it to an external tallylight

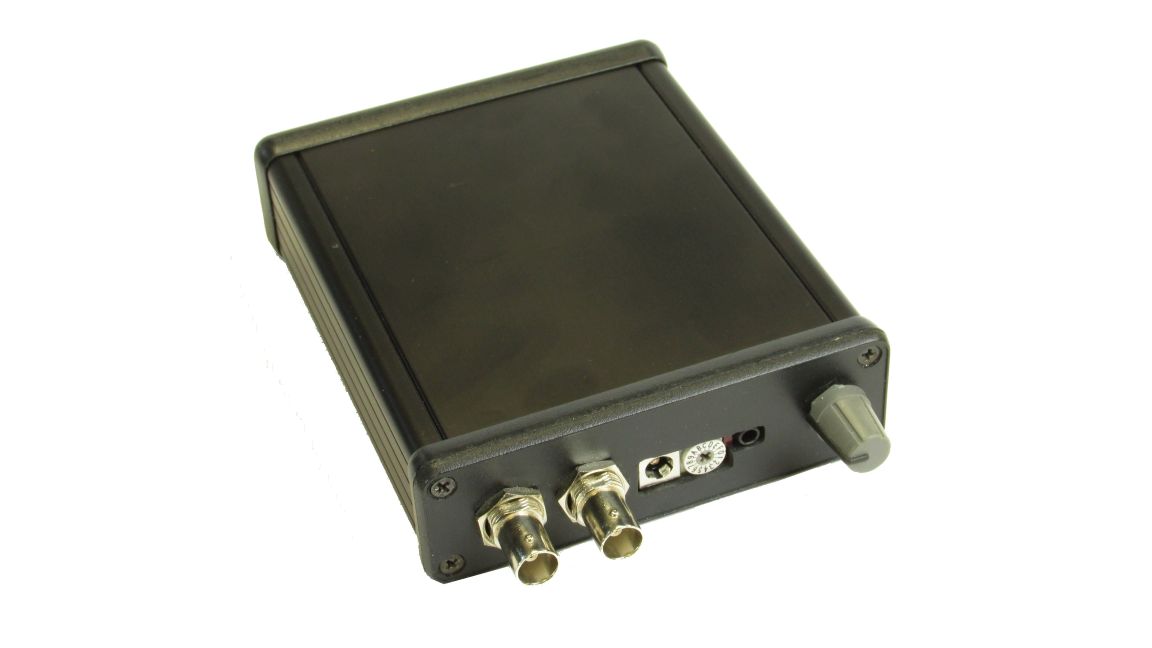

The interface has a built-in tally LED and a 3.5mm connector for tally output. The tally is
dimmable and the tally number is selected with a rotary switch.
The converter is based on Blackmagic 3G-SDI Arduino shield.
Note that this shield accepts 3G SDI maximum. To function with 4K, you need a switcher that can downconvert
the program return signal, such as Constellation mixers (except for Constellation 8K).
